Predictions

Predictions, along with simulations and measurements, form the foundation upon which energy optimization is executed. In EOS, a standard set of predictions is managed, including:

• Household Load Prediction
• Electricity Price Prediction
• Feed In Tariff Prediction
• PV Power Prediction
• Weather Prediction

Storing Predictions

EOS stores predictions in a key-value store, where the term prediction key refers to the unique key used to retrieve specific prediction data.

Prediction Providers

Most predictions can be sourced from various providers. The specific provider to use is configured in the EOS configuration and can be set by prediction type. For example:

{
  "weather": {
    "provider": "ClearOutside"
  }
}

Some providers offer multiple prediction keys. For instance, a weather provider might provide data to prediction keys like:

• weather_temp_air (air temperature)
• weather_wind_speed (wind speed)

Prediction Import Providers

Prediction import providers allow you to import prediction data from:

• A file or a JSON string (primarily for initialization), or
• The PUT /v1/prediction/import/{provider_id} endpoint (recommended for dynamic updates).

An external entity may update the file or JSON string whenever new prediction data becomes available. However, for production use or regular updates, you should prefer the PUT endpoint over file or JSON string based imports.

:::{admonition} Warning :class: warning Be aware that providing dynamic values via a file and/or JSON string alongside other value sources can lead to unintended data overwrites. Moreover, after a restart, even outdated values from the configuration may be reloaded. To avoid these issues, use the PUT endpoint for live data and rely on file/JSON imports only for initial setup. :::

The prediction data must be provided in one of the following formats:

1. DateTimeData

A dictionary with the following structure:

    {
        "start_datetime": "2024-01-01 00:00:00",
        "interval": "1 hour",
        "<prediction key>": [value, value, ...],
        "<prediction key>": [value, value, ...],
        ...
    }

If start_datetime is not provided EOS defaults to the start_datetime of the current energy management run. If interval is not provided EOS defaults to one hour.

2. DateTimeDataFrame

A JSON string created from a pandas dataframe with a DatetimeIndex. Use pandas.DataFrame.to_json(orient="index"). The column name of the data must be the same as the names of the prediction keys.

3. DateTimeSeries

A JSON string created from a pandas series with a DatetimeIndex. Use pandas.Series.to_json(orient="index").

Adjusted Predictions

Certain prediction keys include an _adjusted suffix, such as load_total_adjusted. These predictions are adjusted by real data from your system's measurements if given to enhance accuracy.

For example, the load prediction provider LoadAkkudoktor takes generic load data assembled by Akkudoktor.net, maps that to the yearly energy consumption given in the configuration option loadakkudoktor_year_energy, and finally adjusts the predicted load by the loads of your system.

Prediction Updates

Predictions are updated at the start of each energy management run, i.e., when EOS performs optimization. Key considerations for updates include:

• Predictions sourced from online providers are usually rate-limited to one retrieval per hour.
• Only predictions with a configured provider are updated.
• Some providers may not support all generic prediction keys, leading to potential gaps in updated predictions even after update.

Accessing Predictions

Prediction data can be accessed using the EOS REST API via the /v1/prediction/<...> endpoints.

In a standard configuration, the REST API of a running EOS instance is available at http://localhost:8503/docs. This link provides access to the API documentation and allows you to explore available endpoints interactively.

To view all available prediction keys, use the GET /v1/prediction/keys endpoint.

If no keys are displayed, or if the ones you need are missing, it indicates that your configuration lacks the necessary prediction provider settings. You can configure prediction providers by using the PUT /v1/config endpoint. You may save your configuration to the EOS configuration file.

Electricity Fee Prediction

Prediction keys:

• elecfee_consumption_amt_wh: Total fixed fee for consumed energy per Wh (amount/Wh), accumulating all fixed per-Wh fees payable on consumed energy - such as network charge, concession fee, and electricity charge - into a single amount.
• elecfee_consumption_amt_kwh: Total fixed fee for consumed energy per kWh (amount/kWh), calculated from elecfee_consumption_amt_wh.
• elecfee_consumption_percent_amt: Total fixed surcharge on consumed energy, given as a percentage of the monetary amount already charged for that energy (%), accumulating all percentage-based surcharges - such as VAT - into a single percentage. Applied after elecfee_consumption_amt_wh, i.e. it is calculated on the raw price plus the per-Wh fee.
• elecfee_feedin_amt_wh: Total fixed fee for feed-in energy per Wh (amount/Wh), accumulating all fixed per-Wh fees payable on feed-in energy - such as network charge and concession fee - into a single amount. Applied after elecfee_feedin_percent_amt, i.e. it is deducted from the price as a flat per-Wh amount once the percentage deduction has already been applied.
• elecfee_feedin_amt_kwh: Total fixed fee for feed-in energy per kWh (amount/kWh), calculated from elecfee_feedin_amt_wh.
• elecfee_feedin_percent_amt: Total fixed deduction on feed-in energy, given as a percentage of the raw feed-in price (spot price) for that energy (%), accumulating all percentage-based deductions - such as a marketing or balancing fee retained by the aggregator - into a single percentage. Applied to the raw price before elecfee_feedin_amt_wh is subtracted.

Configuration options:

• elecfee: Electricity fee configuration.

  • provider: Electricity fee provider id of provider to be used.

    • ElecFeeFixed: Caluclates from configured time window fees.
    • ElecFeeImport: Imports from a file or JSON string or by endpoint data provision.

  • elecfeefixed.consumption_amt_kwh.windows: Time windows defining the total fixed per-kWh fee for consumed energy, accumulating fees such as network charge, metering fee, and concession fee into a single amount (amount/kWh).

  • elecfeefixed.consumption_percent_amt.windows: Time windows defining the total fixed surcharge on consumed energy, given as a percentage of the amount already charged, accumulating surcharges such as VAT into a single percentage (%).

  • elecfeefixed.feedin_amt_kwh.windows: Time windows defining the total fixed per-kWh fee or credit for feed-in energy, accumulating fees such as network charge and metering fee into a single amount (amount/kWh).

  • elecfeefixed.feedin_percent_amt.windows: Time windows defining the total fixed deduction on feed-in energy, given as a percentage of the raw feed-in price (spot price), accumulating deductions such as a service charge into a single percentage (%).

  • elecfeeimport.import_file_path: Path to the file to import electricity fee forecast data from.

  • elecfeeimport.import_json: JSON string, dictionary of electricity fee forecast value lists.

ElecFeeFixed Provider

The ElecFeeFixed provider calculates the electricity fees from the configuration of electricity fee time windows set up by the user.

ElecFeeImport Provider

The ElecFeeImport provider is designed to import electricity prices from:

• A file or a JSON string (primarily for initialization). The data source can be given in the import_file_path or import_json configuration option.
• The PUT /v1/prediction/import/ElecFeeImport endpoint (recommended for dynamic updates).

The prediction keys for the electricity fee forecast data are:

• elecfee_consumption_amt_wh: Total fixed fee for consumed energy per Wh (amount/Wh), accumulating all fixed per-Wh fees payable on consumed energy - such as network charge, concession fee, and electricity charge - into a single amount.
• elecfee_consumption_percent_amt: Total fixed surcharge on consumed energy, given as a percentage of the monetary amount already charged for that energy (%), accumulating all percentage-based surcharges - such as VAT - into a single percentage.
• elecfee_feedin_amt_wh: Total fixed fee for feed-in energy per Wh (amount/Wh), accumulating all fixed per-Wh fees payable on feed-in energy - such as network charge and concession fee - into a single amount.
• elecfee_feedin_percent_amt: Total fixed deduction on feed-in energy, given as a percentage of the raw feed-in price (spot price) for that energy (%), accumulating all percentage-based deductions into a single percentage.

The electricity fee forecast data must be provided in one of the formats described in project:#prediction-import-providers.

An external entity may update the file or JSON string whenever new prediction data becomes available. However, for production use or regular updates, you should prefer the PUT endpoint over file or JSON string based imports.

:::{admonition} Warning :class: warning Be aware that providing dynamic values via a file and/or JSON string alongside other value sources can lead to unintended data overwrites. Moreover, after a restart, even outdated values from the configuration may be reloaded. To avoid these issues, use the PUT endpoint for live data and rely on file/JSON imports only for initial setup. :::

Electricity Price Prediction

Prediction keys:

• elecprice_marketprice_raw_wh: Raw electricity market price per Wh, always excluding fees (amount/Wh).
• elecprice_marketprice_wh: Electricity market price per Wh, including fees if configured (amount/Wh).
• elecprice_marketprice_kwh: Electricity market price per kWh (amount/kWh), calculated from elecprice_marketprice_wh.

Configuration options:

• elecprice: Electricity price configuration.

  • provider: Electricity price provider id of provider to be used.

    • ElecPriceAkkudoktor: Retrieves from Akkudoktor.net.
    • ElecPriceEnergyCharts: Retrieves from Energy-Charts.info.
    • ElecPriceFixed: Caluclates from configured time window prices.
    • ElecPriceImport: Imports from a file or JSON string or by endpoint data provision.

  • elecpricefixed.elecprice_marketprice_amt_kwh.windows: The time windows with associated electricity prices.

  • elecpriceimport.import_file_path: Path to the file to import electricity price forecast data from.

  • elecpriceimport.import_json: JSON string, dictionary of electricity price forecast value lists.

  • energycharts.bidding_zone: Bidding zone Energy Charts shall provide price data for.

Fees:

• If fees are given by the ElecFee prediction, the electricity fees are added to the raw market price and stored in elecprice_marketprice_wh.
• The resulting price is calculated as: (raw market price + elecfee_consumption_amt_wh) * (100 + elecfee_consumption_percent_amt) / 100 where elecfee_consumption_amt_wh and elecfee_consumption_percent_amt are given by the ElecFee prediction.

ElecPriceAkkudoktor Provider

The ElecPriceAkkudoktor provider retrieves electricity prices directly from Akkudoktor.net, which supplies price data for the next 24 hours. For periods beyond 24 hours, the provider generates prices by extrapolating historical price data combined with the most recent actual prices obtained from Akkudoktor.net.

Fees are applied if given by the ElecFee prediction.

ElecPriceEnergyCharts Provider

The ElecPriceEnergyCharts provider retrieves day-ahead electricity market prices from Energy-Charts.info. It supports both short-term and extended forecasting by combining real-time market data with historical price trends.

• For the next 24 hours, market prices are fetched directly from Energy-Charts.info.
• For periods beyond 24 hours, prices are estimated using extrapolation based on historical data and the latest available market values.

Fees are applied if given by the ElecFee prediction.

:::{admonition} Note :class: note For the most accurate forecasts, it is recommended to set the historic_hours parameter to 840. :::

ElecPriceFixed Provider

The ElecPriceFixed provider calculates the day-ahead electricity market prices from the configuration of electricity price time windows set up by the user.

Fees are applied if given by the ElecFee prediction.

ElecPriceImport Provider

The ElecPriceImport provider is designed to import electricity prices from:

• A file or a JSON string (primarily for initialization). The data source can be given in the import_file_path or import_json configuration option.
• The PUT /v1/prediction/import/ElecPriceImport endpoint (recommended for dynamic updates).

The prediction keys for the electricity price forecast data are:

• elecprice_marketprice_raw_wh: Raw electricity market price per Wh, always excluding fees (amount/Wh).
• elecprice_marketprice_wh: Electricity market price per Wh, including fees if wished (amount/Wh).

The electricity price forecast data must be provided in one of the formats described in project:#prediction-import-providers.

An external entity may update the file or JSON string whenever new prediction data becomes available. However, for production use or regular updates, you should prefer the PUT endpoint over file or JSON string based imports.

:::{admonition} Warning :class: warning Be aware that providing dynamic values via a file and/or JSON string alongside other value sources can lead to unintended data overwrites. Moreover, after a restart, even outdated values from the configuration may be reloaded. To avoid these issues, use the PUT endpoint for live data and rely on file/JSON imports only for initial setup. :::

:::{admonition} Note :class: note No fees are applied, even if given by the ElecFee prediction. :::

ElecPriceSMARD Provider

The ElecPriceSMARD provider retrieves quarter-hourly German/Luxembourg day-ahead prices directly from the public SMARD chart-data endpoint. It requests the required weekly chunks only and caches the combined response for one hour. Missing quarter-hour slots beyond the published day-ahead horizon are generated with the same daily or weekly seasonal ETS forecast as the Energy-Charts provider.

Fees are applied if given by the ElecFee prediction.

The same raw SMARD series is also available as FeedInTariffSMARD for direct-marketing feed-in revenue.

ElecPriceTibber Provider

:::{admonition} Warning :class: warning elecprice_marketprice_raw_wh is currently not filled by the ElecPriceTibber prediction. :::

Feed In Tariff Prediction

Prediction keys:

• feed_in_tariff_raw_wh: Feed in tarif per Wh, always excluding fees (€/Wh).
• feed_in_tariff_wh: Feed in tarif per Wh, including fees if configured (€/Wh).
• feed_in_tariff_kwh: Feed in tarif per kWh (€/kWh), calculated from feed_in_tariff_wh.

Configuration options:

• feedintariff: Feed in tariff configuration.

  • provider: Feed in tariff provider id of provider to be used.

    • FeedInTariffAkkudoktor: Retrieves raw day-ahead market prices from the public Akkudoktor API without
    • FeedInTariffEnergyCharts: Retrieves Energy-Charts day-ahead market prices and extends them to the configured prediction horizon when necessary.
    • FeedInTariffFixed: Provides fixed feed in tariff values.
    • FeedInTariffImport: Imports from a file or JSON string or by endpoint data provision.
    • FeedInTariffTibber: Retrieves Tibber's native quarter-hour energy-price component.

  • energycharts.bidding_zone: Bidding zone Energy Charts shall provide feed-in tariff for.

  • feedintarifffixed.feed_in_tariff_amt_kwh.windows: The time windows with associated fixed feed-in tariff (Amount/kWh).

  • feedintariffimport.import_file_path: Path to the file to import feed in tariff forecast data from.

  • feedintariffimport.import_json: JSON string, dictionary of feed in tariff value lists.

Fees:

• If fees are given by the ElecFee prediction, the electricity fees are subtracted from the raw feed-in tariff and stored in feed_in_tariff_wh.
• The resulting tariff is calculated as: raw feed in tariff * (100 - elecfee_feedin_percent_amt) / 100 - elecfee_feedin_amt_wh where elecfee_feedin_amt_wh and elecfee_feedin_percent_amt are given by the ElecFee prediction.

FeedInTariffAkkudoktor Provider

The FeedInTariffAkkudoktor provider uses raw day-ahead market prices from https://api.akkudoktor.net/prices as feed_in_tariff_wh. Published prices are extended to the configured prediction horizon with the same seasonal ETS or median fallback used by the Akkudoktor electricity-price provider.

The Akkudoktor endpoint currently forwards hourly market prices from aWATTar. With a 15-minute optimization interval, EOS holds each hourly price constant for its four quarter-hour slots. This keeps the slot grid consistent but does not create genuine quarter-hour market prices.

{
  "feedintariff": {
    "provider": "FeedInTariffAkkudoktor"
  }
}

:::{admonition} Warning :class: warning feed_in_tariff_raw_wh is currently not filled by the FeedInTariffAkkudoktor prediction. :::

:::{admonition} Note :class: note No fees are applied, even if given by the ElecFee prediction. :::

FeedInTariffDvhubOnline Provider

TBD

FeedInTariffEnergyCharts Provider

The FeedInTariffEnergyCharts provider uses the raw Energy-Charts day-ahead market price as the feed-in tariff. It stores raw prices in feed_in_tariff_raw_wh without adding electricity fees. The data is loaded from the Energy-Charts /price endpoint for the configured bidding zone. The native Energy-Charts resolution, including quarter-hour data, is retained.

Energy-Charts usually supplies prices only for the published day-ahead period. If that data does not cover the complete configured prediction horizon, the provider extends it as follows:

• With more than 800 hours of history, an ETS (Holt-Winters exponential smoothing) forecast with weekly seasonality is used.
• With more than 168 hours of history, an ETS forecast with daily seasonality is used.
• With less history, the median of the available values is used as a constant fallback.

The seasonal periods are adjusted to the source resolution. For example, quarter-hour data uses four values per hour. Values already supplied by Energy-Charts are kept unchanged; only missing future slots after the last published price are forecast. Consequently, a 15-minute optimization uses four forecast values per hour without converting them to hourly averages.

Fees are applied if given by the ElecFee prediction.

Example configuration:

{
  "feedintariff": {
    "provider": "FeedInTariffEnergyCharts",
    "energycharts": {
      "bidding_zone": "DE-LU"
    }
  }
}

FeedInTariffFixed Provider

The FeedInTariffFixed provider calculates the day-ahead feed-in tariffs from the configuration of feed-in tariff time windows set up by the user.

Fees are applied if given by the ElecFee prediction.

FeedInTariffImport Provider

The FeedInTariffImport provider is designed to import feed in tariff prices from:

• A file or a JSON string (primarily for initialization). The data source can be given in the import_file_path or import_json configuration option.
• The PUT /v1/prediction/import/FeedInTariffImport endpoint (recommended for dynamic updates).

The prediction keys for the feed in tariff price forecast data are:

• feed_in_tariff_raw_wh: Feed in tarif per Wh, always excluding fees (€/Wh).
• feed_in_tariff_wh: Feed in tarif per Wh, including fees if wished (€/Wh).

The feed in tariff price forecast data must be provided in one of the formats described in project:#prediction-import-providers.

An external entity may update the file or JSON string whenever new prediction data becomes available. However, for production use or regular updates, you should prefer the PUT endpoint over file or JSON string based imports.

:::{admonition} Warning :class: warning Be aware that providing dynamic values via a file and/or JSON string alongside other value sources can lead to unintended data overwrites. Moreover, after a restart, even outdated values from the configuration may be reloaded. To avoid these issues, use the PUT endpoint for live data and rely on file/JSON imports only for initial setup. :::

:::{admonition} Note :class: note No fees are applied, even if given by the ElecFee prediction. :::

FeedInTariffSMARD Provider

he FeedInTariffSMARD provider retrieves quarter-hourly German/Luxembourg day-ahead prices directly from the public SMARD chart-data endpoint. It requests the required weekly chunks only and caches the combined response for one hour. Missing quarter-hour slots beyond the published day-ahead horizon are generated with the same daily or weekly seasonal ETS forecast as the Energy-Charts provider.

Fees are applied if given by the ElecFee prediction.

FeedInTariffTibber Provider

The FeedInTariffTibber provider requests priceInfo and priceInfoRange with resolution: QUARTER_HOURLY and preserves the native 15-minute timestamps. It uses Tibber's energy spot-price component without the tax part or EOS electricity-price charges. The end-customer total component is deliberately ignored.

The provider deliberately rejects hourly API responses instead of silently repeating them. It reuses elecprice.tibber.access_token and elecprice.tibber.home_id, so no duplicate credentials are needed.

{
  "feedintariff": {
    "provider": "FeedInTariffTibber"
  }
}

:::{admonition} Warning :class: warning feed_in_tariff_raw_wh is currently not filled by the FeedInTariffTibber prediction. :::

Load Prediction

Prediction keys:

• loadforecast_power_w: Predicted load mean value (W).

Configuration options:

• load: Load configuration.

  • provider: Load provider id of provider to be used.

    • LoadAkkudoktor: Retrieves from local database.
    • LoadVrm: Retrieves data from the Victron Remeote Management (VRM) API by Victron Energy.
    • LoadImport: Imports from a file or JSON string or by endpoint data provision.

  • loadakkudoktor.loadakkudoktor_year_energy_kwh: Yearly energy consumption (kWh).

  • vrm.load_vrm_token: API token.

  • vrm.load_vrm_idsite: load_vrm_idsite.

  • loadimport.loadimport_file_path: Path to the file to import load forecast data from.

  • loadimport.loadimport_json: JSON string, dictionary of load forecast value lists.

LoadAkkudoktor Provider

The LoadAkkudoktor provider retrieves generic load data from the local database and scales it to match the annual energy consumption specified in the LoadAkkudoktor.loadakkudoktor_year_energy configuration option.

Prediction keys:

• loadforecast_power_w: Predicted load mean value (W).
• loadakkudoktor_mean_power_w: Predicted load mean value (W). Same as loadforecast_power_w.
• loadakkudoktor_std_power_w: Predicted load standard deviation (W).

LoadAkkudoktorAdjusted Provider

The LoadAkkudoktorAdjusted provider retrieves generic load data from the local database and scales it to match the annual energy consumption specified in the LoadAkkudoktor.loadakkudoktor_year_energy configuration option. In addition, the provider refines the forecast by incorporating available measured load data, ensuring a more realistic and site-specific consumption profile.

Prediction keys:

• loadforecast_power_w: Adjusted load mean value (W).
• loadakkudoktor_mean_power_w: Predicted load mean value (W).
• loadakkudoktor_std_power_w: Predicted load standard deviation (W).

For details on how to supply load measurements, see the Measurements section.

LoadVrm Provider

The LoadVrm provider retrieves load forecast data from the VRM API by Victron Energy. To receive forecasts, the system data must be configured under Dynamic ESS in the VRM portal. To query the forecasts, an API token is required, which can also be created in the VRM portal under Preferences. This token must be stored in the EOS configuration along with the VRM-Installations-ID.

    {
        "load": {
            "provider": "LoadVrm",
            "vrm": {
                "token": "dummy-token",
                "site_id": 12345
            }
        }
    }

The prediction key for the load forecast data is:

• loadforecast_power_w: Predicted load mean value (W).

LoadImport Provider

The LoadImport provider is designed to import load forecast data from:

• A file or a JSON string (primarily for initialization). The data source can be given in the loadimport_file_path or loadimport_json configuration option.
• The PUT /v1/prediction/import/LoadImport endpoint (recommended for dynamic updates).

The prediction key for the load forecast data is:

• loadforecast_power_w: Predicted load mean value (W).

The load forecast data must be provided in one of the formats described in project:#prediction-import-providers.

An external entity may update the file or JSON string whenever new prediction data becomes available. However, for production use or regular updates, you should prefer the PUT endpoint over file or JSON string based imports.

:::{admonition} Warning :class: warning Be aware that providing dynamic values via a file and/or JSON string alongside other value sources can lead to unintended data overwrites. Moreover, after a restart, even outdated values from the configuration may be reloaded. To avoid these issues, use the PUT endpoint for live data and rely on file/JSON imports only for initial setup. :::

PV Power Prediction

Prediction keys:

• pvforecast_ac_power: Total DC power (W).
• pvforecast_dc_power: Total AC power (W).

Configuration options:

• general: General configuration.

  • latitude: Latitude in decimal degrees, between -90 and 90, north is positive (ISO 19115) (°)"
  • longitude: Longitude in decimal degrees, within -180 to 180 (°)

• pvforecast: PV forecast configuration.

  • provider: PVForecast provider id of provider to be used.

    • PVForecastAkkudoktor: Retrieves forcast from Akkudoktor.net.
    • PVForecastVrm: Retrieves forecast from the Victron Remote Management (VRM) API.
    • PVForecastPVNode: Retrieves native 15-minute forecasts from the pvnode.com API.
    • PVForecastForecastSolar: Retrieves forecasts from the free Forecast.Solar API.
    • PVForecastSolcast: Retrieves forecasts from the Solcast rooftop-site API.
    • PVForecastImport: Imports from a file or JSON string or by endpoint data provision.

  • vrm.token: Victron Remote Management (VRM) access token.

  • vrm.site_id: Victron Remote Management (VRM) installation ID.

  • pvnode.site_id: pvnode.com saved-site id. Leave empty for inline mode.

  • pvnode.api_key: pvnode.com API key.

  • pvnode.site_id: pvnode.com saved-site id. Leave empty for inline mode.

  • pvnode.forecast_days: Forecast horizon in days (1-7).

  • forecastsolar.api_key: Forecast.Solar API key (optional).

  • solcast.api_key: Solcast API key.

  • solcast.site_id: Solcast rooftop resource (site) id.

  • pvforcastimport.import_file_path: Path to the file to import PV forecast data from.

  • pvforcastimport.import_json: JSON string, dictionary of PV forecast value lists.

  • planes[].surface_tilt: Tilt angle from horizontal plane. Ignored for two-axis tracking.

  • planes[].surface_azimuth: Orientation (azimuth angle) of the (fixed) plane. Clockwise from north (north=0, east=90, south=180, west=270).

  • planes[].userhorizon: Elevation of horizon in degrees, at equally spaced azimuth clockwise from north.

  • planes[].peakpower: Nominal power of PV system in kW.

  • planes[].pvtechchoice: PV technology. One of 'crystSi', 'CIS', 'CdTe', 'Unknown'.

  • planes[].mountingplace: Type of mounting for PV system. Options are 'free' for free-standing and 'building' for building-integrated.

  • planes[].loss: Sum of PV system losses in percent

  • planes[].trackingtype: Type of suntracking. 0=fixed, 1=single horizontal axis aligned north-south, 2=two-axis tracking, 3=vertical axis tracking, 4=single horizontal axis aligned east-west, 5=single inclined axis aligned north-south.

  • planes[].optimal_surface_tilt: Calculate the optimum tilt angle. Ignored for two-axis tracking.

  • planes[].optimalangles: Calculate the optimum tilt and azimuth angles. Ignored for two-axis tracking.

  • planes[].albedo: Proportion of the light hitting the ground that it reflects back.

  • planes[].module_model: Model of the PV modules of this plane.

  • planes[].inverter_model: Model of the inverter of this plane.

  • planes[].inverter_paco: AC power rating of the inverter. [W]

  • planes[].modules_per_string: Number of the PV modules of the strings of this plane.

  • planes[].strings_per_inverter: Number of the strings of the inverter of this plane.

---

Detailed definitions taken from PVGIS.

• pvtechchoice

The performance of PV modules depends on the temperature and on the solar irradiance, but the exact dependence varies between different types of PV modules. At the moment we can estimate the losses due to temperature and irradiance effects for the following types of modules: crystalline silicon cells; thin film modules made from CIS or CIGS and thin film modules made from Cadmium Telluride (CdTe).

For other technologies (especially various amorphous technologies), this correction cannot be calculated here. If you choose one of the first three options here the calculation of performance will take into account the temperature dependence of the performance of the chosen technology. If you choose the other option (other/unknown), the calculation will assume a loss of 8% of power due to temperature effects (a generic value which has found to be reasonable for temperate climates).

PV power output also depends on the spectrum of the solar radiation. PVGIS can calculate how the variations of the spectrum of sunlight affects the overall energy production from a PV system. At the moment this calculation can be done for crystalline silicon and CdTe modules. Note that this calculation is not yet available when using the NSRDB solar radiation database.

• peakpower

This is the power that the manufacturer declares that the PV array can produce under standard test conditions (STC), which are a constant 1000W of solar irradiation per square meter in the plane of the array, at an array temperature of 25°C. The peak power should be entered in kilowatt-peak (kWp). If you do not know the declared peak power of your modules but instead know the area of the modules and the declared conversion efficiency (in percent), you can calculate the peak power as power = area * efficiency / 100.

Bifacial modules: PVGIS doesn't make specific calculations for bifacial modules at present. Users who wish to explore the possible benefits of this technology can input the power value for Bifacial Nameplate Irradiance. This can also be can also be estimated from the front side peak power P_STC value and the bifaciality factor, φ (if reported in the module data sheet) as: P_BNPI = P_STC * (1 + φ * 0.135). NB this bifacial approach is not appropriate for BAPV or BIPV installations or for modules mounting on a N-S axis i.e. facing E-W.

• loss

The estimated system losses are all the losses in the system, which cause the power actually delivered to the electricity grid to be lower than the power produced by the PV modules. There are several causes for this loss, such as losses in cables, power inverters, dirt (sometimes snow) on the modules and so on. Over the years the modules also tend to lose a bit of their power, so the average yearly output over the lifetime of the system will be a few percent lower than the output in the first years.

We have given a default value of 14% for the overall losses. If you have a good idea that your value will be different (maybe due to a really high-efficiency inverter) you may reduce this value a little.

• mountingplace

For fixed (non-tracking) systems, the way the modules are mounted will have an influence on the temperature of the module, which in turn affects the efficiency. Experiments have shown that if the movement of air behind the modules is restricted, the modules can get considerably hotter (up to 15°C at 1000W/m2 of sunlight).

In PVGIS there are two possibilities: free-standing, meaning that the modules are mounted on a rack with air flowing freely behind the modules; and building- integrated, which means that the modules are completely built into the structure of the wall or roof of a building, with no air movement behind the modules.

Some types of mounting are in between these two extremes, for instance if the modules are mounted on a roof with curved roof tiles, allowing air to move behind the modules. In such cases, the performance will be somewhere between the results of the two calculations that are possible here.

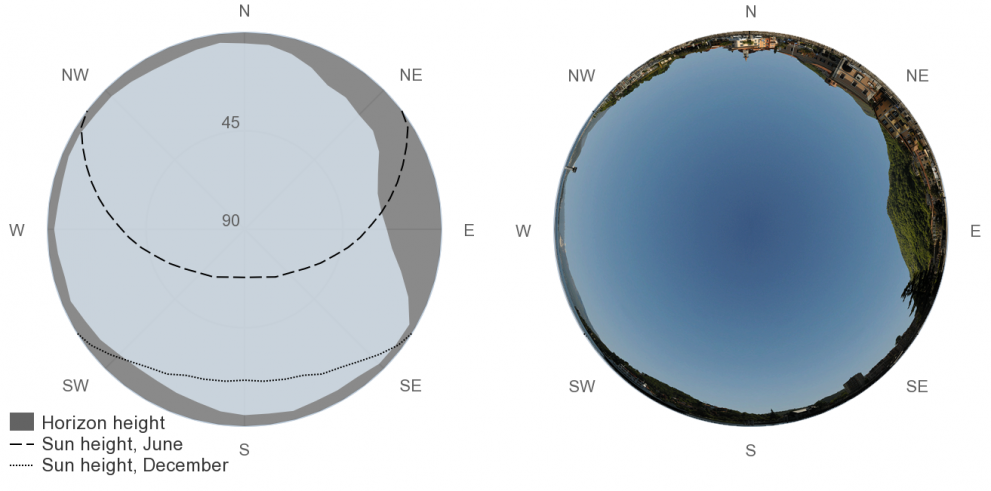

• userhorizon

Elevation of horizon in degrees, at equally spaced azimuth clockwise from north. In the user horizon data each number represents the horizon height in degrees in a certain compass direction around the point of interest. The horizon heights should be given in a clockwise direction starting at North; that is, from North, going to East, South, West, and back to North. The values are assumed to represent equal angular distance around the horizon. For instance, if you have 36 values, the first point is due north, the next is 10 degrees east of north, and so on, until the last point, 10 degrees west of north.

Most of the configuration options are in line with the PVLib definition for PVGIS data.

Detailed definitions from PVLib for PVGIS data.

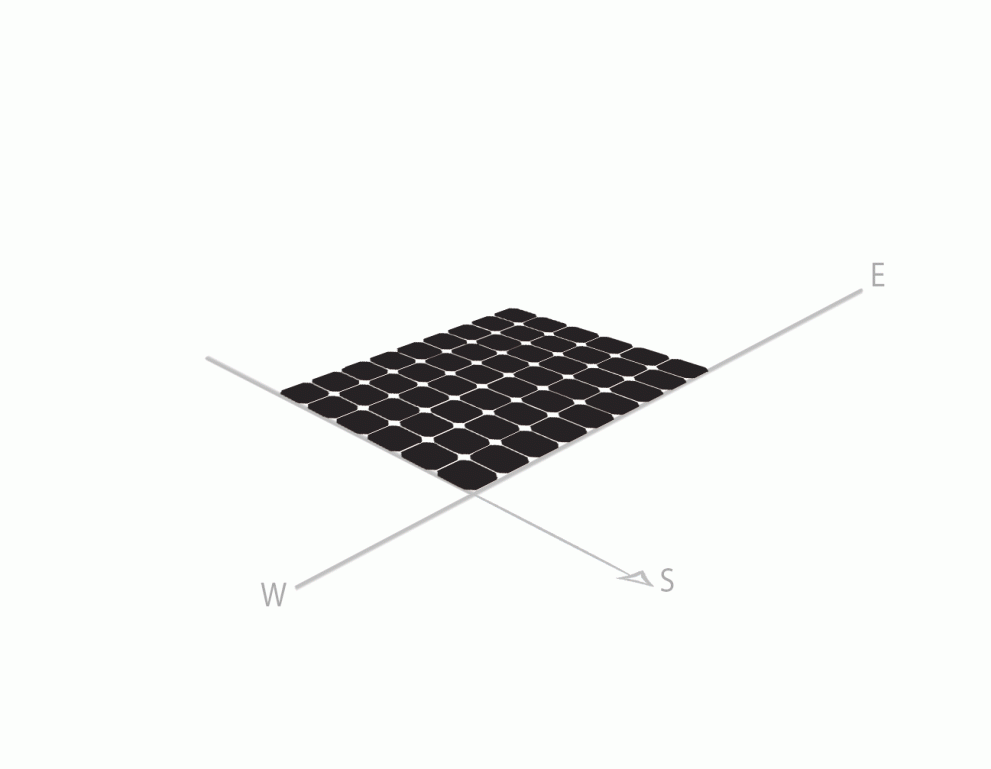

• surface_tilt:

Tilt angle from horizontal plane.

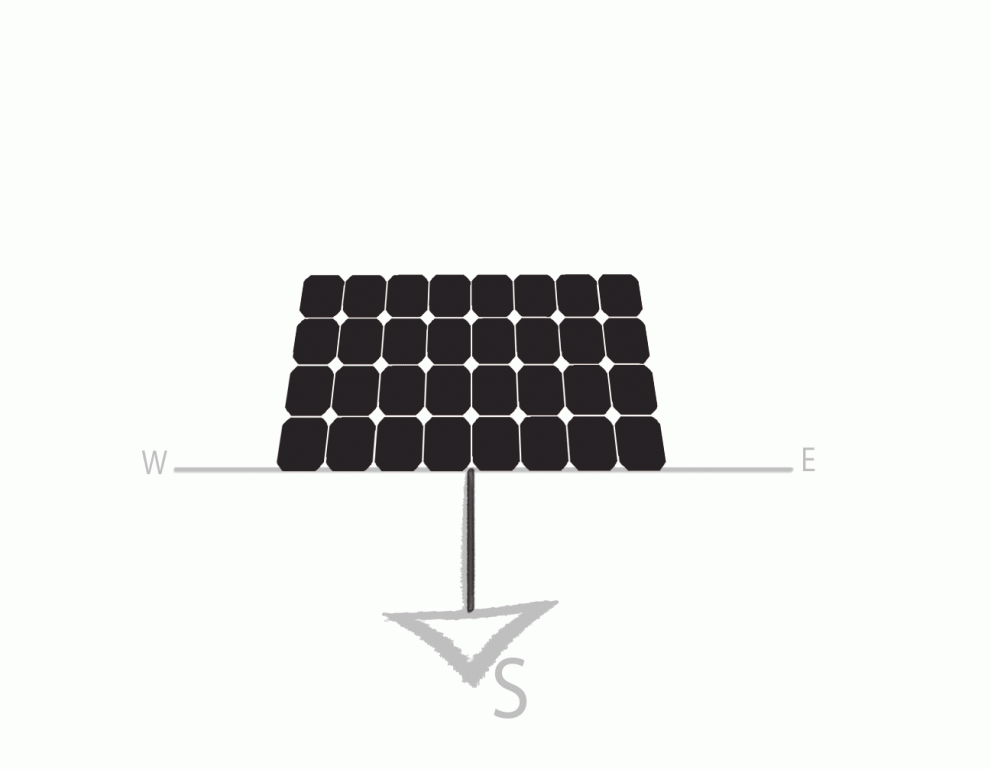

• surface_azimuth

Orientation (azimuth angle) of the (fixed) plane. Clockwise from north (north=0, east=90, south=180, west=270). This is offset 180 degrees from the convention used by PVGIS.

PVForecastAkkudoktor Provider

The PVForecastAkkudoktor provider retrieves the PV power forecast data directly from Akkudoktor.net.

The following prediction configuration options of the PV system must be set:

• general.latitude: Latitude in decimal degrees, between -90 and 90, north is positive (ISO 19115) (°)"
• general.longitude: Longitude in decimal degrees, within -180 to 180 (°)

For each plane of the PV system the following configuration options must be set:

• pvforecast.planes[].surface_tilt: Tilt angle from horizontal plane. Ignored for two-axis tracking.
• pvforecast.planes[].surface_azimuth: Orientation (azimuth angle) of the (fixed) plane. Clockwise from north (north=0, east=90, south=180, west=270).
• pvforecast.planes[].userhorizon: Elevation of horizon in degrees, at equally spaced azimuth clockwise from north.
• pvforecast.planes[].inverter_paco: AC power rating of the inverter. [W]
• pvforecast.planes[].peakpower: Nominal power of PV system in kW.

Example:

{
  "general": {
    "latitude": 50.1234,
    "longitude": 9.7654,
  },
  "pvforecast": {
    "provider": "PVForecastAkkudoktor",
    "planes": [
      {
        "peakpower": 5.0,
        "surface_azimuth": -10,
        "surface_tilt": 7,
        "userhorizon": [20, 27, 22, 20],
        "inverter_paco": 10000
      },
      {
        "peakpower": 4.8,
        "surface_azimuth": -90,
        "surface_tilt": 7,
        "userhorizon": [30, 30, 30, 50],
        "inverter_paco": 10000
      },
      {
        "peakpower": 1.4,
        "surface_azimuth": -40,
        "surface_tilt": 60,
        "userhorizon": [60, 30, 0, 30],
        "inverter_paco": 2000
      },
      {
        "peakpower": 1.6,
        "surface_azimuth": 5,
        "surface_tilt": 45,
        "userhorizon": [45, 25, 30, 60],
        "inverter_paco": 1400
      }
    ]
  }
}

PVForecastVrm Provider

The PVForecastVrm provider retrieves pv power forecast data from the Victron Remote Management (VRM) API by Victron Energy. To receive forecasts, the system data must be configured under Dynamic ESS in the VRM portal. To query the forecasts, an API token is required, which can also be created in the VRM portal under Preferences. This token must be stored in the EOS configuration along with the VRM-Installations-ID (site_id).

    {
        "pvforecast": {
            "provider": "PVForecastVrm",
            "vrm": {
                "token": "dummy-token",
                "site_id": 12345
            }
    }

The prediction keys for the PV forecast data are:

• pvforecast_dc_power: Total DC power (W).

PVForecastImport Provider

The PVForecastImport provider is designed to import PV forecast data from a file or a JSON string. An external entity should update the file or JSON string whenever new prediction data becomes available.

The prediction keys for the PV forecast data are:

• pvforecast_ac_power: Total AC power (W).
• pvforecast_dc_power: Total DC power (W).

The PV forecast data must be provided in one of the formats described in project:#prediction-import-providers. The data source can be given in the import_file_path or import_json configuration option.

The data may additionally or solely be provided by the PUT /v1/prediction/import/PVForecastImport endpoint.

PVForecastPVLib Provider

The PVForecastPVLib provider calculates PV power forecasts locally using the PVLib simulation library. Unlike the API-based providers, no external forecast service is required. The provider uses the configured PV system geometry together with the weather prediction (weather_ghi, weather_dni, weather_dhi, weather_temp_air, etc.) to simulate the expected DC module power and AC inverter output.

The provider supports multiple PV planes and automatically sums their power. Module and inverter models are selected from the CEC database by name or by their nominal power rating. AkkudoktorEOS automatically generates and caches the required CEC databases on first use by combining the current SAM database, legacy PVLib entries, and the additional EMHASS models.

The following prediction keys are provided:

• pvforecast_ac_power: Total AC power (W).
• pvforecast_dc_power: Total DC power (W).

Currently, the configuration options userhorizon, optimalangles, and tracking systems (trackingtype != 0) are ignored. If no albedo is configured, a default value of 0.2 is used.

PVForecastPVNode Provider

The PVForecastPVNode provider retrieves native 15-minute PV power forecasts from the pvnode.com V2 API. Register a site in the pvnode web app and store the API key together with the site id in the EOS configuration (saved-site mode). Alternatively, leave the site id empty to send the configured planes geometry inline.

    {
        "pvforecast": {
            "provider": "PVForecastPVNode",
            "pvnode": {
                "api_key": "your-pvnode-key",
                "site_id": "your-site-id",
                "forecast_days": 2
            }
        }
    }

The prediction keys for the PV forecast data are:

• pvforecast_ac_power: Total AC power (W).
• pvforecast_dc_power: Total DC power (W).

PVForecastForecastSolar Provider

The PVForecastForecastSolar provider retrieves PV power forecasts from the free Forecast.Solar API. No API key is required for the public endpoint; an optional key raises the rate limit. The location is taken from general.latitude/longitude and the system geometry from the configured planes (one request per plane, summed per timestamp).

    {
        "pvforecast": {
            "provider": "PVForecastForecastSolar",
            "forecastsolar": {
               "api_key": null
            }
        }
    }

The prediction keys for the PV forecast data are:

• pvforecast_ac_power: Total AC power (W).
• pvforecast_dc_power: Total DC power (W).

PVForecastSolcast Provider

The PVForecastSolcast provider retrieves PV power forecasts from the Solcast rooftop-site API. Register a rooftop site in the Solcast web app and store the API key together with the resource (site) id in the EOS configuration. Note that the free tier limits the number of API calls per day.

    {
        "pvforecast": {
            "provider": "PVForecastSolcast",
            "solcast": {
                "api_key": "your-solcast-key",
                "site_id": "your-resource-id"
            }
        }
    }

The prediction keys for the PV forecast data are:

• pvforecast_ac_power: Total AC power (W).
• pvforecast_dc_power: Total DC power (W).

Weather Prediction

Prediction keys:

• weather_dew_point: Dew Point (°C)
• weather_dhi: Diffuse Horizontal Irradiance (W/m2)
• weather_dni: Direct Normal Irradiance (W/m2)
• weather_feels_like: Feels Like (°C)
• weather_fog: Fog (%)
• weather_frost_chance: Chance of Frost
• weather_ghi: Global Horizontal Irradiance (W/m2)
• weather_high_clouds: High Clouds (% Sky Obscured)
• weather_low_clouds: Low Clouds (% Sky Obscured)
• weather_medium_clouds: Medium Clouds (% Sky Obscured)
• weather_ozone: Ozone (du)
• weather_precip_amt: Precipitation Amount (mm)
• weather_precip_prob: Precipitation Probability (%)
• weather_preciptable_water: Precipitable Water (cm)
• weather_precip_type: Precipitation Type
• weather_pressure: Pressure (mb)
• weather_relative_humidity: Relative Humidity (%)
• weather_temp_air: Temperature (°C)
• weather_total_clouds: Total Clouds (% Sky Obscured)
• weather_visibility: Visibility (m)
• weather_wind_direction: Wind Direction (°)
• weather_wind_speed: Wind Speed (kmph)

Configuration options:

• weather: General weather configuration.

  • provider: Load provider id of provider to be used.

    • BrightSky: Retrieves from BrightSky.
    • ClearOutside: Retrieves from ClearOutside.
    • OpenMeteo: Retrieves from OpenMeteo.
    • WeatherImport: Imports from a file or JSON string or by endpoint data provision.

  • weatherimport.import_file_path: Path to the file to import weatherforecast data from.

  • weatherimport.import_json: JSON string, dictionary of weather forecast value lists.

BrightSky Provider

The BrightSky provider retrieves the weather forecast data directly from BrightSky.

The provider provides forecast data for the following prediction keys:

• weather_dew_point: Dew Point (°C)
• weather_ghi: Global Horizontal Irradiance (W/m2)
• weather_precip_amt: Precipitation Amount (mm)
• weather_precip_prob: Precipitation Probability (%)
• weather_pressure: Pressure (mb)
• weather_relative_humidity: Relative Humidity (%)
• weather_temp_air: Temperature (°C)
• weather_total_clouds: Total Clouds (% Sky Obscured)
• weather_visibility: Visibility (m)
• weather_wind_direction: Wind Direction (°)
• weather_wind_speed: Wind Speed (kmph)

ClearOutside Provider

The ClearOutside provider retrieves the weather forecast data directly from ClearOutside.

The provider provides forecast data for the following prediction keys:

• weather_dew_point: Dew Point (°C)
• weather_dhi: Diffuse Horizontal Irradiance (W/m2)
• weather_dni: Direct Normal Irradiance (W/m2)
• weather_feels_like: Feels Like (°C)
• weather_fog: Fog (%)
• weather_frost_chance: Chance of Frost
• weather_ghi: Global Horizontal Irradiance (W/m2)
• weather_high_clouds: High Clouds (% Sky Obscured)
• weather_low_clouds: Low Clouds (% Sky Obscured)
• weather_medium_clouds: Medium Clouds (% Sky Obscured)
• weather_ozone: Ozone (du)
• weather_precip_amt: Precipitation Amount (mm)
• weather_precip_prob: Precipitation Probability (%)
• weather_preciptable_water: Precipitable Water (cm)
• weather_precip_type: Precipitation Type
• weather_pressure: Pressure (mb)
• weather_relative_humidity: Relative Humidity (%)
• weather_temp_air: Temperature (°C)
• weather_total_clouds: Total Clouds (% Sky Obscured)
• weather_visibility: Visibility (m)
• weather_wind_direction: Wind Direction (°)
• weather_wind_speed: Wind Speed (kmph)

OpenMeteo Provider

The OpenMeteo provider retrieves the weather forecast data directly from OpenMeteo.

The provider provides forecast data for the following prediction keys:

• weather_dew_point: Dew Point (°C)
• weather_dhi: Diffuse Horizontal Irradiance (W/m2)
• weather_dni: Direct Normal Irradiance (W/m2)
• weather_feels_like: Feels Like (°C)
• weather_ghi: Global Horizontal Irradiance (W/m2)
• weather_high_clouds: High Clouds (% Sky Obscured)
• weather_low_clouds: Low Clouds (% Sky Obscured)
• weather_medium_clouds: Medium Clouds (% Sky Obscured)
• weather_precip_amt: Precipitation Amount (mm)
• weather_precip_prob: Precipitation Probability (%)
• weather_pressure: Pressure (mb)
• weather_relative_humidity: Relative Humidity (%)
• weather_temp_air: Temperature (°C)
• weather_total_clouds: Total Clouds (% Sky Obscured)
• weather_visibility: Visibility (m)
• weather_wind_direction: Wind Direction (°)
• weather_wind_speed: Wind Speed (kmph)

WeatherImport Provider

The WeatherImport provider is designed to import weather forecast data from a file or a JSON string. An external entity should update the file or JSON string whenever new prediction data becomes available.

The prediction keys for the weather forecast data are:

• weather_dew_point: Dew Point (°C)
• weather_dhi: Diffuse Horizontal Irradiance (W/m2)
• weather_dni: Direct Normal Irradiance (W/m2)
• weather_feels_like: Feels Like (°C)
• weather_fog: Fog (%)
• weather_frost_chance: Chance of Frost
• weather_ghi: Global Horizontal Irradiance (W/m2)
• weather_high_clouds: High Clouds (% Sky Obscured)
• weather_low_clouds: Low Clouds (% Sky Obscured)
• weather_medium_clouds: Medium Clouds (% Sky Obscured)
• weather_ozone: Ozone (du)
• weather_precip_amt: Precipitation Amount (mm)
• weather_precip_prob: Precipitation Probability (%)
• weather_preciptable_water: Precipitable Water (cm)
• weather_precip_type: Precipitation Type
• weather_pressure: Pressure (mb)
• weather_relative_humidity: Relative Humidity (%)
• weather_temp_air: Temperature (°C)
• weather_total_clouds: Total Clouds (% Sky Obscured)
• weather_visibility: Visibility (m)
• weather_wind_direction: Wind Direction (°)
• weather_wind_speed: Wind Speed (kmph)

The weather forecast data must be provided in one of the formats described in project:#prediction-import-providers. The data source can be given in the import_file_path or import_json configuration option.

The data may additionally or solely be provided by the PUT /v1/prediction/import/WeatherImport endpoint.
